Description

Marlboro Signal Jammer

Signal Jammer

work process:
1, through the DC – DC booster circuit will be used to power booster to 45 v,
and then sent via the remote control instruction of different frequency boot device,
device receives the different instructions after internal microcontroller,
the power output of a specific frequency signal control transistor power oscillation signal processing, sideways to the appropriate frequency.
2, through the special high-frequency RF transistor pulse oscillation circuit. Enlarge the power signal after finishing processing.
3, high output rf signal sorting again by low-frequency coil magnetic field of electromagnetic wave signal output

Working on separator principle: game consoles and separator can emit high frequency electromagnetic wave,
the console control chip on the motherboard have points, with game consoles can interfere with the game board,
coin, key points, high frequency magnetic field signal can penetrate the inside of the machine wire, resistor,
capacitor, chip, IC, transistor, SCM, etc., after the interference on the points on the integrated circuit
receives signals or refund money, the machine will automatically on or refund COINS, electric equipment
is made up of thousands of electronic components, electrical engineer is the most headache is electromagnetic interference,
especially in high frequency, ultra high frequency electromagnetic interference, the problem is now and in the future is difficult to conquer.

Product introduction:
The power supply voltage: 12.6 V

45 v working voltage:

Working pattern: remote control 4 file output, high frequency pulse

Antenna pattern: built-in + strengthen external (sealed)

Instrument color: marlboro

Size: 90 x55x30mm

Instrument power: 20 w

Power switch: single open the switch

Cooling modes: internal heat sink

Slot machine,single pokies, attachment slot machines, roulette machine, Coins machine, paper money, lottery, electronic currency card reader,

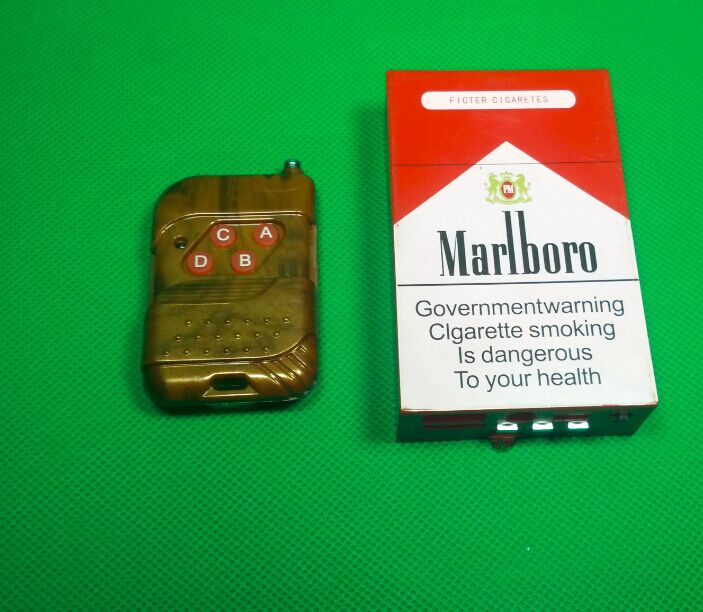

Equipment characteristics: this machine adopts remote control + cigarette packaging, appearance is hidden,
reliable and original microcomputer program control, with 4 kinds of pulse frequency to send more accurate,

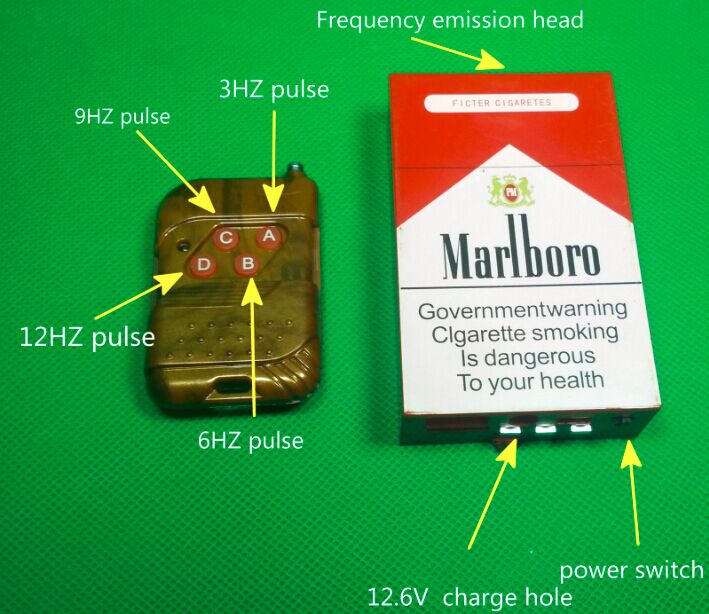

stable A key: 3 hz + 460 MHZ mixing signals
B button: 6 hz + 460 MHZ mixing signal, C key: 9 hz + 460 MHZ mixing signal, D key: 12 hz + 460 MHZ mixing signal,
using electronic equipment working voltage booster circuit is higher, more strong power.
Instrument power supply:
1, a single charge note: special charger
2, the use of three series of A product lithium battery electric booster (45 v) after booster, larger capacity, durable
3, battery terminal USES the self-recovery fuse, higher safety performance
4, the charger current 350 ma, the biggest battery faster

Launch:
1, enameled wire coil is made of high quality, precision round, more standard and more stable
2, imported high power transistor (function stronger)
3, the latest debug method, power is more powerful

manual:

1. Charge jammer for 1 hour
2. Put jammer near the coin or bill acceptor
   1. Press the emitter switch of remote control
   2. Signal Jammer
